X-Series · Compare the range
The whole lineup At a glance.
Every metric, plotted across the range.
Cree Lighting X-Series Flashlights — 01 / 04
Compact everyday carry.
Balanced output and runtime.
Extended reach in the dark.
Mission-grade output and control.
FIND YOUR FLASHLIGHT IN 4 STEPS
I need a flashlight for , carried .
Question 1 of 4
A product match has not been configured for this selection.
Which flashlight matches your use case and carry size?
- Best flashlight for Everyday Carry, carried in my pocket: 1400-Lumen Tactical Flashlight (SKU CL-FLR-X14). Powerful 1,400-lumen output for clear visibility when it matters most. A focused beam for spotting details at greater distances.
- Best flashlight for Everyday Carry, carried on my belt: 1400-Lumen Tactical Flashlight (SKU CL-FLR-X14). Powerful 1,400-lumen output for clear visibility when it matters most. A focused beam for spotting details at greater distances.
- Best flashlight for Tactical Duty, carried in my pocket: 1400-Lumen Tactical Flashlight (SKU CL-FLR-X14). Powerful 1,400-lumen output for clear visibility when it matters most. A focused beam for spotting details at greater distances.
- Best flashlight for Pro Trades, carried in my pocket: 1400-Lumen Tactical Flashlight (SKU CL-FLR-X14). Powerful 1,400-lumen output for clear visibility when it matters most. A focused beam for spotting details at greater distances.
- Best flashlight for Everyday Carry, carried on my belt: 1600-Lumen Tactical Flashlight (SKU CL-FLR-X16). Powerful 1,600-lumen output for clear visibility in demanding conditions. A focused beam for identifying details at greater distances.
- Best flashlight for Tactical Duty, carried in my gear bag: 1600-Lumen Tactical Flashlight (SKU CL-FLR-X16). Powerful 1,600-lumen output for clear visibility in demanding conditions. A focused beam for identifying details at greater distances.
- Best flashlight for Outdoor Search, carried in my pocket: 1600-Lumen Tactical Flashlight (SKU CL-FLR-X16). Powerful 1,600-lumen output for clear visibility in demanding conditions. A focused beam for identifying details at greater distances.
- Best flashlight for Outdoor Search, carried on my belt: 3000-Lumen Tactical Flashlight (SKU CL-FLR-X30). Powerful 3,000-lumen output for illuminating large outdoor areas. A focused beam for identifying details at greater distances.
- Best flashlight for Outdoor Search, carried in my gear bag: 3000-Lumen Tactical Flashlight (SKU CL-FLR-X30). Powerful 3,000-lumen output for illuminating large outdoor areas. A focused beam for identifying details at greater distances.
- Best flashlight for Pro Trades, carried on my belt: 4000-Lumen Pro Flashlight (SKU CL-FLR-XP40). Powerful 4,000-lumen output for illuminating demanding jobsites and work areas. A focused beam for inspecting distant work areas and hard-to-reach spaces.
- Best flashlight for Pro Trades, carried in my gear bag: 4000-Lumen Pro Flashlight (SKU CL-FLR-XP40). Powerful 4,000-lumen output for illuminating demanding jobsites and work areas. A focused beam for inspecting distant work areas and hard-to-reach spaces.
X-Series · Performance readout
Output, runtime & reach.
Highlighting
—
Max output · Turbo runtime · Throw distance
Max outputpeak · lumens
1400Lumens
1600Lumens
3000Lumens
4000Lumens
Extreme brightness for any situation.
Turbo runtimesustained · h / min
1hRuntime
1h 45mRuntime
2h 10mRuntime
2h 15mRuntime
Consistent power when it matters.
Throw distanceANSI beam · m
X14
408m
X16
436m
X30
574m
XP40
330m
X-Series · Technical comparison
Compare X-Series flashlights Spec by spec.
| Model | X14Compact EDC | X16Tactical Duty | X30Long-Range Thrower | XP40Precision Pro |
|---|---|---|---|---|
 |  |  |  | |
| Dimensionslength × bezel Ø | 103 × 30 mm | 154 × 34 mm | 147 × 29 mm | 133 × 30 mm |
| Max Outputlumens | 1400lm | 1600lm | 3000lm | 4000lm |
| Peak Beam intensitycandela | 42,026 cd | 41,720 cd | 82,400 cd | 27,360 cd |
| Throw distanceANSI beam | 408 m | 436 m | 574 m | 330 m |
| RuntimeTurbo | 1h | 1h 45m | 2h 10m | 2h 15m |
| Battery | 1 × 18350 (1,600mAh) | 1 × 18650 (3,500mAh) | 1 × 21700 (4,500mAh) | 1 × 21700 (4,500mAh) |

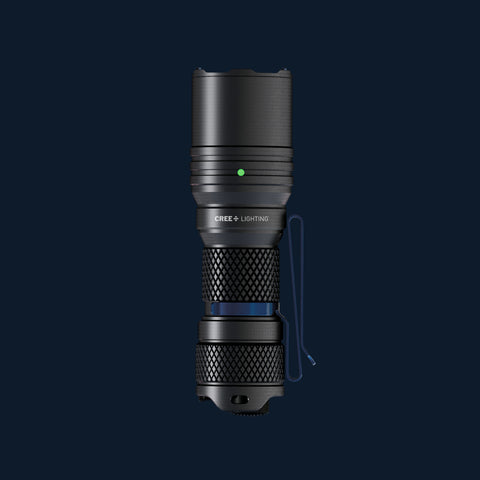

X14Compact EDC
- Dimensions
- 103 × 30 mm
- Max Output
- 1400lm
- Peak Beam Intensity
- 42,026 cd
- Throw Distance
- 408 m
- Runtime
- 1h
- Battery
- 1 × 18350 (1,600mAh)
X16Tactical Duty
- Dimensions
- 154 × 34 mm
- Max Output
- 1600lm
- Peak Beam Intensity
- 41,720 cd
- Throw Distance
- 436 m
- Runtime
- 1h 45m
- Battery
- 1 × 18650 (3,500mAh)

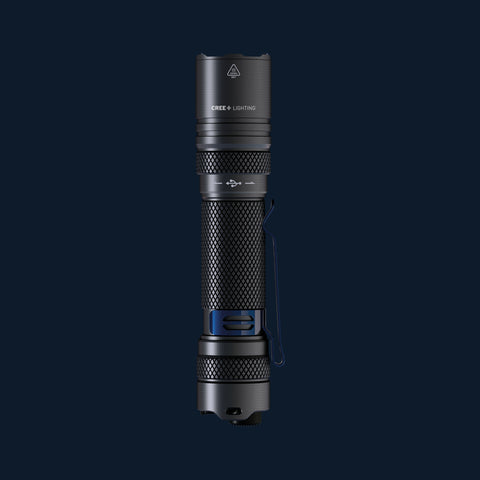

X30Long-Range Thrower
- Dimensions
- 147 × 29 mm
- Max Output
- 3000lm
- Peak Beam Intensity
- 82,400 cd
- Throw Distance
- 574 m
- Runtime
- 2h 10m
- Battery
- 1 × 21700 (4,500mAh)

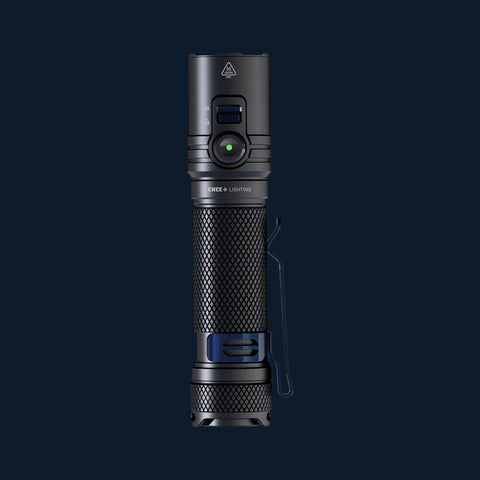

XP40Precision Pro
- Dimensions
- 133 × 30 mm
- Max Output
- 4000lm
- Peak Beam Intensity
- 27,360 cd
- Throw Distance
- 330 m
- Runtime
- 2h 15m
- Battery
- 1 × 21700 (4,500mAh)
X-Series · FAQ
Questions, answered.
Which X-Series flashlight should I buy?
Pick the X14 for everyday carry, the X16 for high-impact duty jobs, X30 for long-range outdoor work, and the XP40 for professional trade work.
How bright are X-Series flashlights and how far do they throw?
Brightness ranges from 1,400 to 4,000 lumens depending on the model. Throw distance ranges from the XP40’s 330 meters to the X30’s 574 meters.
Are X-Series flashlights waterproof?
Yes. Every X-Series light is rated IP68 — fully dust-tight and submersible to 2 meters — and drop-tested to 1.5 meters, so it keeps working in rain, mud, and snow.
How are they charged and what batteries do they use?
All models recharge over USB-C with fast charging — no proprietary dock. Cells scale with size: an 18350 in the X14, 18650 in the X16, and high-capacity 21700 cells in the X30 and XP40.
Buying Guide
Still Not Sure Which Light is Right?
Specs only tell half the story. Read the full breakdown of which X-Series model fits your job - everyday carry, job site, outdoors, or professional duty - with real-world use cases for each.
